UART / I2C 変換ブリッジ SC18IM700IPW, 112 (In English: Master I²C-bus controller with UART interface)

製品
　UART / I2C 変換ブリッジ（NXP Semiconductors）

特徴
・UARTからI2Cへ変換可能
・I2CからUART へ変換可能
・汎用IO　8Pin 付き
・High-speed UART 460.8 kbit/s
・High-speed I2C-bus: 400 kbit/s
・16-byte TX FIFO
・16-byte RX FIFO
・Programmable baud rate generator
・2.4 V and 3.6 V operation
・Sleep mode (power-down)
・5 V tolerance on the input pins
・8 N 1 UART format (8 data bits, no parity bit, 1 stop bit)

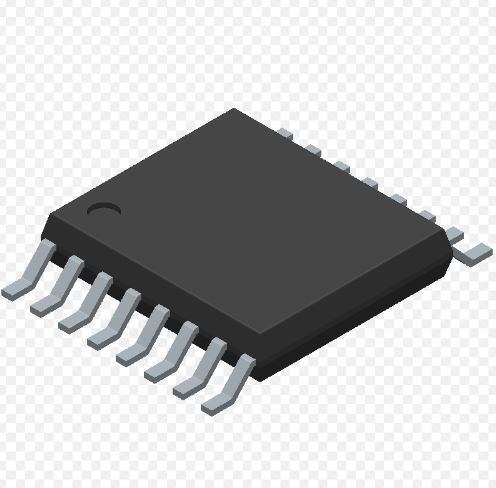

・Available in very small TSSOP16 package

In English－－－－－－－－－－－－－－－－－－－－

Product
　SC18IM700IPW: Master I²C-bus controller with UART interface
（NXP Semiconductors）



Features
UART host interface
I2C-bus controller
Eight programmable I/O pins
High-speed UART: baud rate up to 460.8 kbit/s
High-speed I2C-bus: 400 kbit/s
16-byte TX FIFO
16-byte RX FIFO
Programmable baud rate generator
2.4 V and 3.6 V operation
Sleep mode (power-down)
UART message format resembles I2C-bus transaction format
I2C-bus master functions
Multi-master capability
5 V tolerance on the input pins
8 N 1 UART format (8 data bits, no parity bit, 1 stop bit)
Available in very small TSSOP16 package
